Sightmark Photon XT 6.5x50L Review

PointOptics is reader supported. We earn an affiliate commission if you buy through our links . Learn More.

The Bottom Line

Sightmark offers a quality entry-level to mid-range night vision scope with the Photon XT 6.5x50L. While you’re not going to get all the bells and whistles found in top-of-the-range scopes, you are going to end up with a night vision scope that is very capable in the field without having to break the bank in the process.


At a Glance

  • Magnification: 6.5x
  • Battery: 2x AA
  • FoV: 18ft@100 Yards
  • Eye Relief: 60mm
  • Battery Life: 4-5 hours
  • Lens Diameter: 50mm

When it comes to purchasing a night vision scope for hunting the number of products available can make the task rather overwhelming. This is especially true in the case of online reviews seemingly contradicting each other. As always, defining your budget is a great first step before purchasing any product. Night vision scopes can be particularly difficult to make an educated purchase on, due to the nature of the technology used and the market as a whole.

The Sightmark Photon XT 6.5x50L positions itself somewhere in the entry budget to mid-range market, offering some of the features found on more expensive devices, but perhaps lacking the reliability in construction that you see on the high-end night vision scopes.

Let’s touch on some of the specs

The Sightmark Photon XT works well as an all-around night vision scope. The 6.5x magnification is certainly an impressive feature for a scope in this price range, though this extended range does mean that while this scope isn’t ideal for hunting at very close ranges, though still versatile enough for most situations. The 50mm objective lens diameter ensures that sufficient lighting is let through the scope. In turn, we see good brightness and clarity in the optics, and you can get some very vivid details at up to 200 yards. Precision should not be an issue, because inside the Photon XT you’ll find a digital elevation and windage adjustment system. This takes away a lot of the potential struggle of doing things manually.

There are six green/white/red options for long-distance applications, two crossbow reticles, a Mil-Dot reticle for holdovers and rangefinding, two Duplex reticles for varmint and hogs, as well as a German-style reticle. The ability to swap between these reticles provides what is often a sought-after versatility. You can take a look at detailed specs on the reticles here. Media features are also included. If you’re a person who wants to review, or even share what they saw on their adventures, you can output video via the RCA plugs you will find.

The build quality in terms of construction is pretty good. It’s sturdy and well made, and it will hold up to most of the things that might happen when you’re out at night. There’s an IPX4 rating, so splashes and rain won’t hurt it either. You will also find an integrated weaver rail if you want to attach additional accessories. This is not a necessity in most situations, but something to consider. Power is supplied via two AA batteries, and you can expect around 4 hours of battery life if you’re using IR, or around 5 if you aren’t.

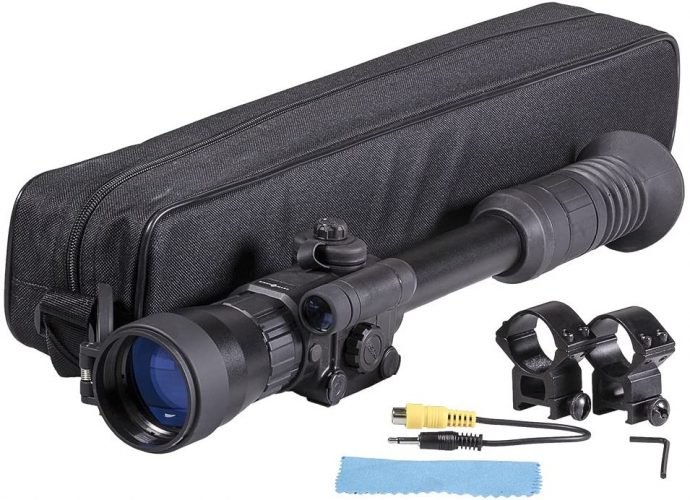

night vision scope sitemark photon xt

How does it perform?

Even though you might not expect it to do so, it actually does punch a bit above its weight in terms of performance. The 200 yards range is great, you get clear, vivid images on the display, and the video-out feature is a welcome addition. Features such as the vast range of options in terms of reticles, as well as the built-in windage and elevation adjustment are all things that are hard to come by when you’re looking at scopes within this price range. Even some very high-end scopes don’t have them, which makes the Photon XT a good value-for-money choice.

sitemark photon xt night vision scope

What to consider before buying

There are a couple of things that should be mentioned before you pull the trigger and purchase it. There are two models of the Sightmark Photon XT 6.5×50. One of them is the 6.5x50L, and the other one is the 6.5x50S.

The difference that one single letter makes is bigger than you may think. The internal infrared illuminator is actually completely different. If you intend to use an external one (and you can with the weaver rail), this may not make much of a difference. However, the built-in one is actually pretty good, so it’s worth knowing what you’ll be getting. The S model has an LED IR illuminator, while the L model has a laser IR illuminator.

The LED illuminator falls short in comparison, which may be a potential downside when you have a 6.5 times magnification and 200 yards of range. It is a tad grainier, but if you really want to take full advantage of the Photon XT, you should go for the L model. The laser also uses less battery, which is appreciated given that those 4 hours aren’t actually that much. Keep in mind that both offer a fixed beam pattern, which doesn’t give you an option of focusing it in a different direction.

Sightmark Photon XT 6.5x50S vs Photon XT 6.5x50L Specifications

Photon XT 6.5x50SPhoton XT 6.5x50L
Camera resolution:656×492 pixels656×492 pixels
Display type:LCDLCD
Display resolution:640×480 pixels640×480 pixels
Video input/output:RCARCA
Magnification:6.5x6.5x
Objective lens diameter:50mm50mm
Field of view:22.5ft@100 Yards18ft@100 Yards
Eye relief:60mm60mm
IR wavelength:810nm780nm
Range of detection:164m200m
Power supply:2.0-3.32.0-3.3
Battery type:2xAA2xAA
Battery life:Up to 5 hoursUp to 5 hours
Dimensions:17x3x3.25″16.9×2.9×3.1″
